CMB-67G-01 首页 > 产品介绍


点击查看大图

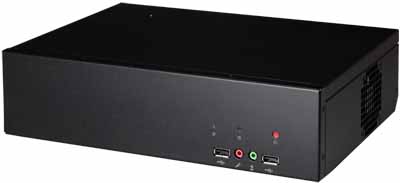

Mini Barebone system support 2nd generation Intel® Core™
i7/i5/i3 Desktop processor , DDR3 up to 16 GB , VGA & DVI
, 2 x Giga LAN,COM , USB , HD audio , PCI-Express X16 slot


| Overview | Feature | Specification | Product Image | Ordering Guide |
| Datasheet (PDF format) | Manual | Driver | BIOS |


Overview

COMMELL's CMB-67G-01 is a high-performance Mini-ITX barebone systems which support 2nd generation Intel® Core™ i7/i5/i3 Desktop processor in LGA 1155, CMB-67G-01 come with

1 x PCI-Express X16 slot , Mini-PCIe & Mini-PCI expansion slots to allow customer to add cards without modify case, Such as Ethernet, serial port, IEEE 1394, Wifi card. CMB-67G-01 is suitable for industrial application like industrial  control and automation, retail, gaming, print imaging .......


Feature
Form Factor  Mini barebone system
Construction  Heavy-Duty steel
Mini-ITX Board / CPU

 Inside Motherboard : LV-67G

 Support CPU : 2nd generation Intel® Core™  i7/i5/i3 in LGA 1155

Drive Bay

 1 x internal 3.5” HDD or 2 x internal 2.5” HDD space or

 2 x external 2.5” HDD space by drive cage

Extensive slot

 1 x PCI-Express X16 slot , Mini-PCIe & Mini-PCI sockets

Thermal Control  1 x  6 cm system cooling Fan
Front Panel

 Power On / Off switch

 LED for Power On/Off and HDD activity

 2 x USB ports

 Mic-in / Ear phone

Rear Side I/O

 1 x PS/2 Keyboard/Mouse

 1 x VGA

 1 x DVI

 1 x RS232/422/485 + 2 x RS232

 4 x USB 2.0

 2 x RJ-45 Intel® Giga LAN

 2 x cutout for DB9 COM port ( Can't be used when use 3.5" HDD or

 external 2.5" HDD )

 1 x cutout for antenna

Environment  Operating Temperature: 0 ~ 40ºC
Power supply  250 watt power supply
Dimension  300 x 220 x 80 mm

Specification

Ordering Guide

CMB-67G-01

Barebone with LV-67G, CPU Fan, 250W power supply & PCIe riser card

Processor

Intel® Core™  i7-2600 / i5-2400 / i3-2120 mobile processor

Memory

DDR3 1066/1333 for 1.0GB / 2.0 GB / 4.0 / 8.0 GB
